5MM-FLAME-SENSOR

MINIMUM TECH FEATURES

• Collector-Emitter Voltage (VCEO): 30V
• Emitter-Collector Voltage (VECO): 5V
• Collector Current (IC): 20mA
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +100°C

DESCRIPTION

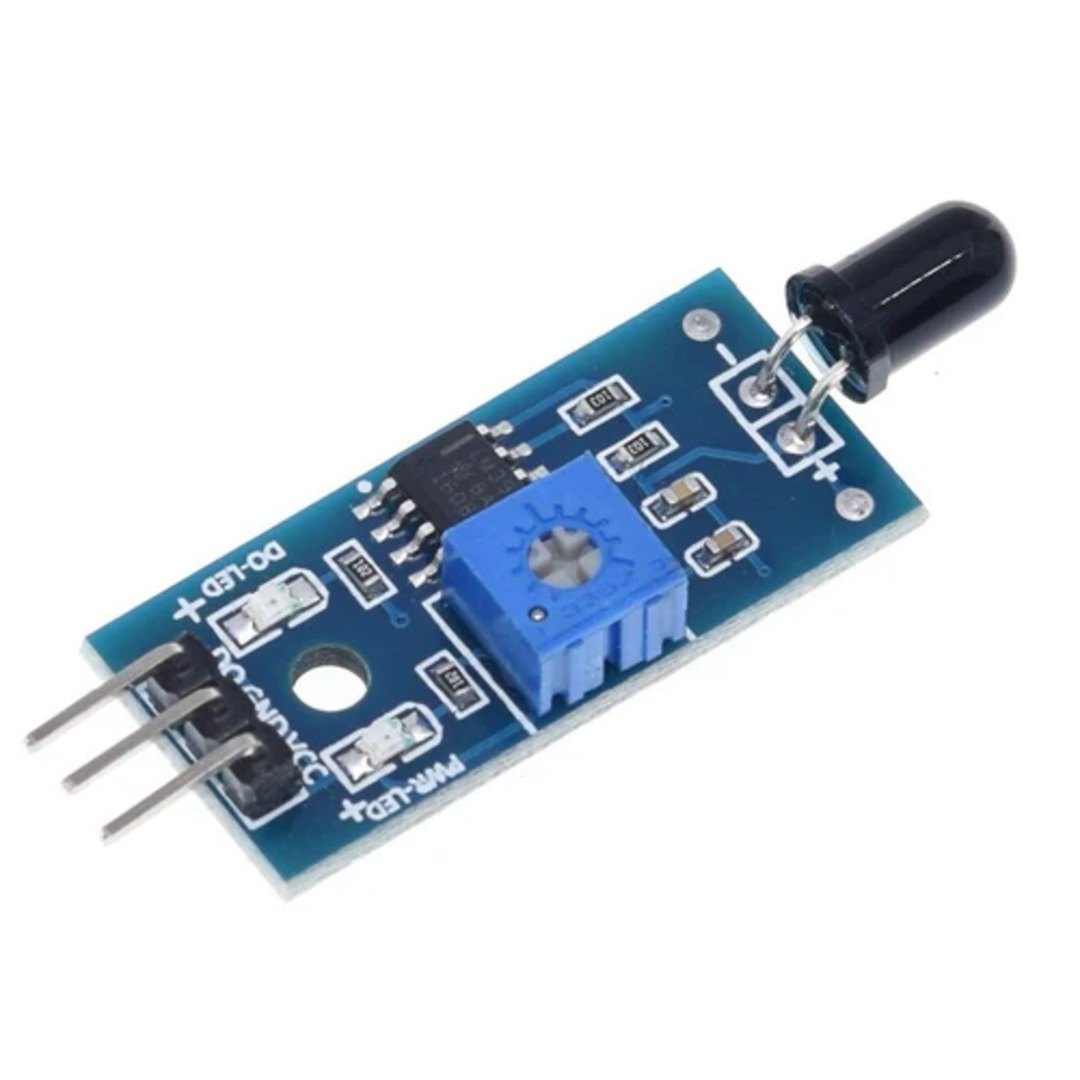

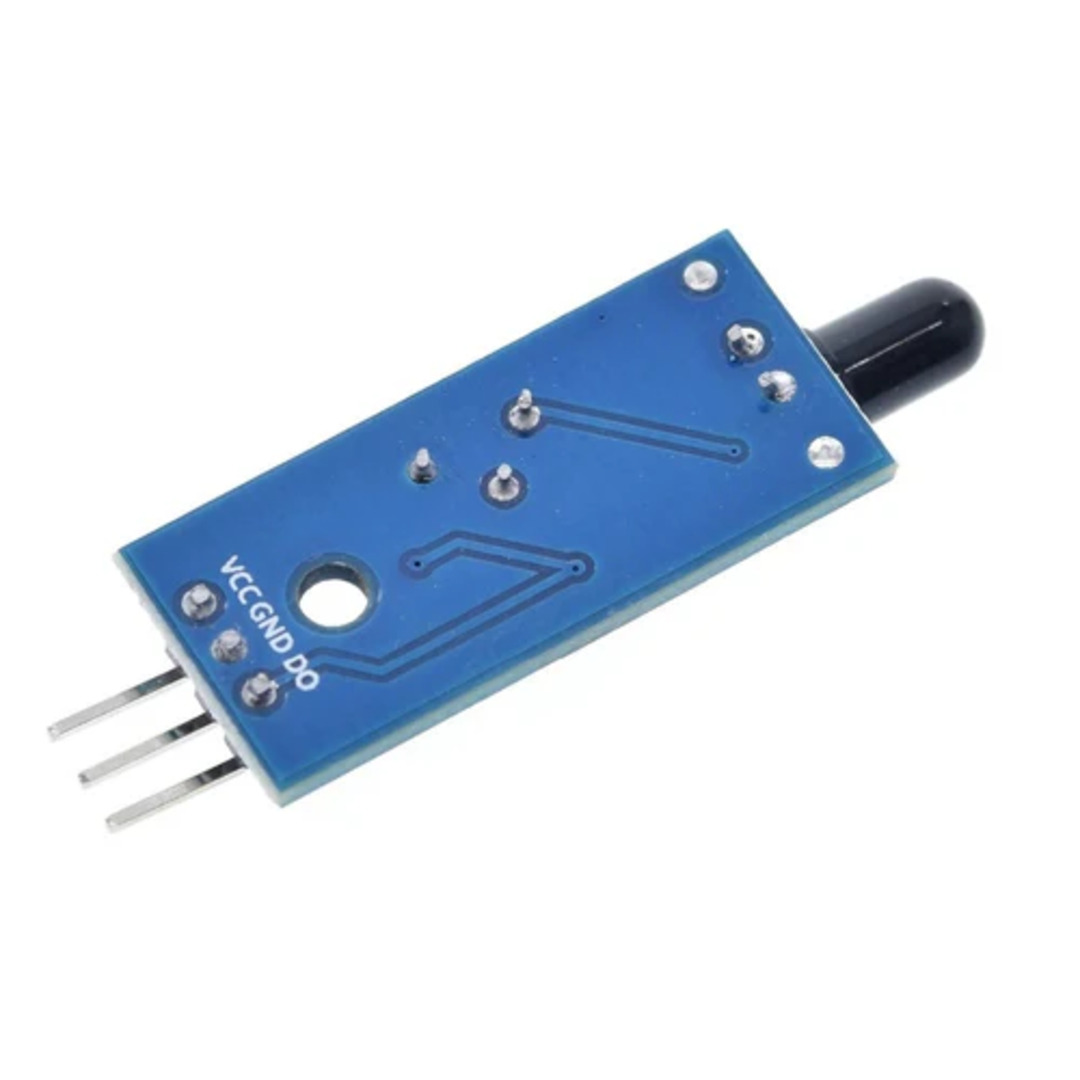

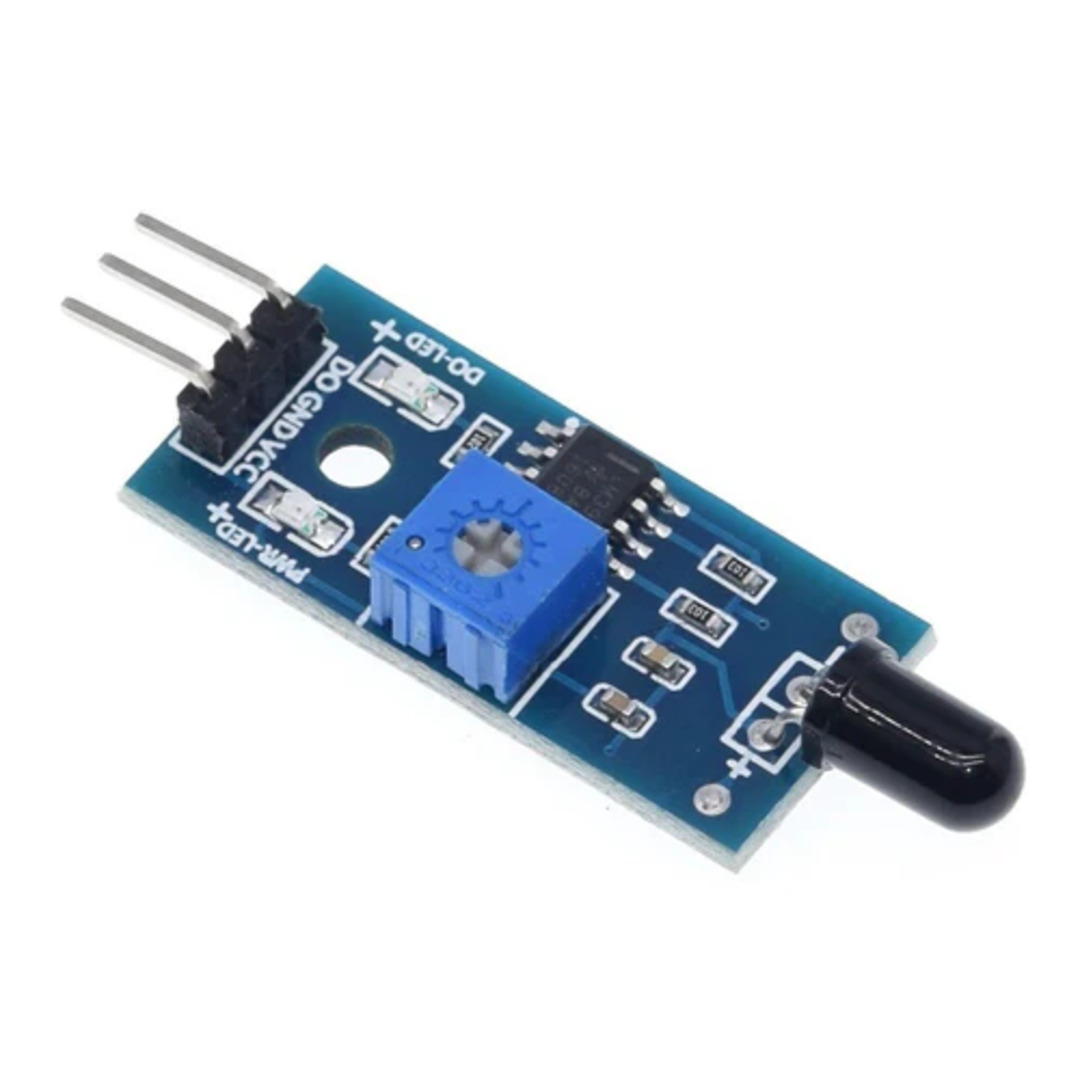

• The 5MM Flame Sensor is a compact infrared-sensitive phototransistor packaged in a standard 5mm (LED-like) epoxy housing. Its small size makes it easy to integrate into various fire-detection, automation, or safety systems.
• It uses a phototransistor tuned to detect the light wavelengths (primarily IR) emitted by open flames. When exposed to flame-origin light, the phototransistor conducts more current, enabling flame detection through voltage or current changes in the connected circuit.
• Many flame sensors include a built-in optical filter/lens, increasing sensitivity and selectivity toward flame IR radiation while reducing interference from normal ambient light.
• As a light-dependent phototransistor, the sensor’s resistance decreases with increasing IR intensity, generating a measurable analog signal.
• Used in circuits where flame presence needs to be monitored. Typical applications require interfacing with a comparator module or ADC input on a microcontroller.
• Proper positioning and shielding are essential because ambient IR sources (heaters, sunlight) may affect readings.

TECHNICAL SPECIFICATIONS

APPLICATIONS

• Fire Detection Systems
• Safety Equipment
• Automation and Control Systems
• Consumer Electronics
• Research and Development
• Environmental Monitoring
• Automotive Applications
• Robotics
