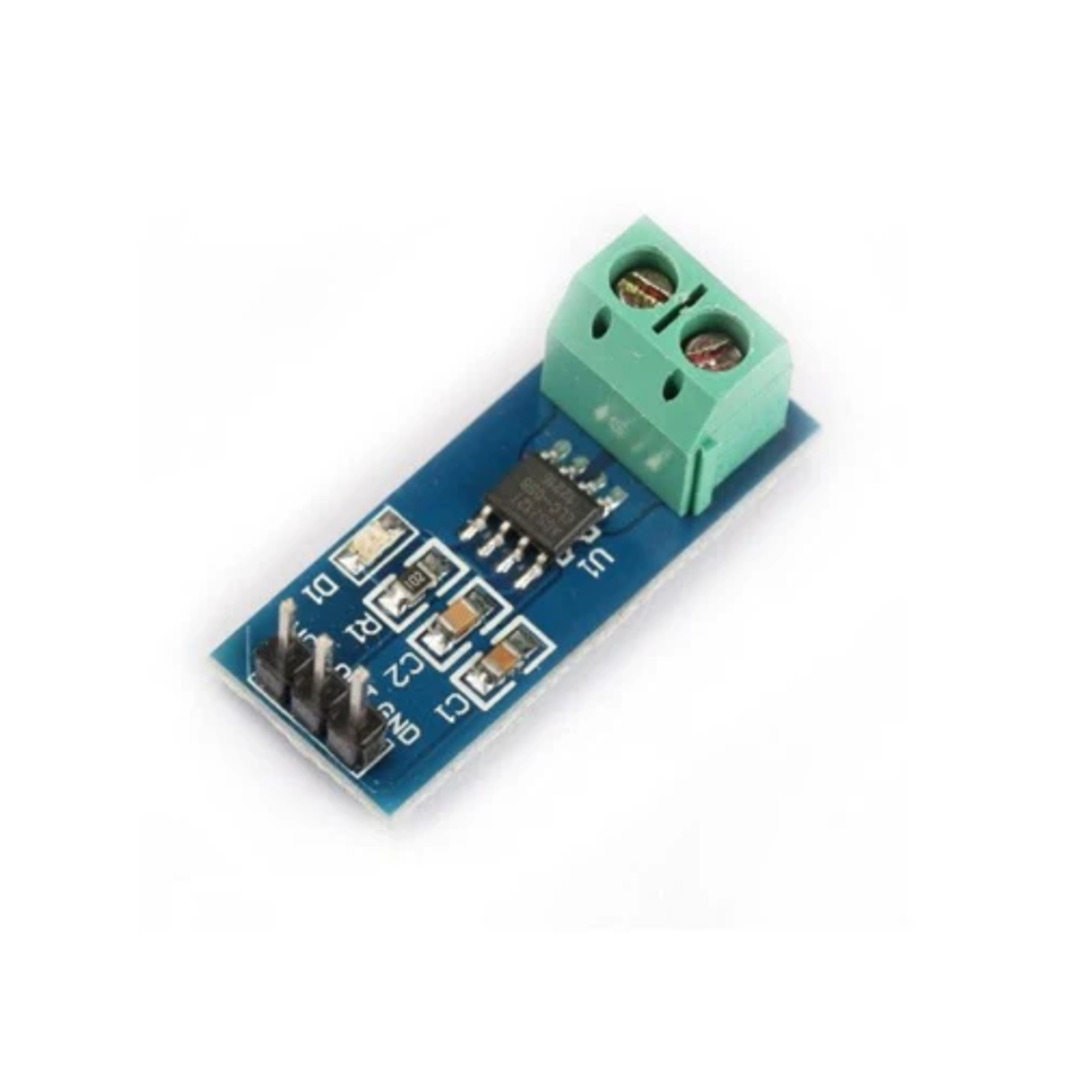

ACS712-30AMS-CURRENT

MINIMUM TECH FEATURES:

• Current Measurement Range: ±30 A
• Supply Voltage: 5 V to 5.5 V
• Sensitivity: 100mV/A
• Bandwidth: Up to 80 kHz
• Minimum Isolation Voltage:1 kVRMS
• Accuracy: Typically, ±1.5%
• Operating Temperature: -40°C to 85°C.
• Dimensions: Usually around 3.6 cm x 1.5 cm

DESCRIPTION:

• The ACS712 sensor operates based on Hall Effect technology, which measures the magnetic field generated by the current flowing through its internal conductor.
• This non-intrusive sensing method enables accurate current measurement with minimal insertion loss, ensuring efficient system performance.
• The sensor is well-suited for applications that require high-current monitoring, such as industrial equipment, motor control systems, power management circuits, and energy monitoring solutions.
• The module provides an analog voltage output that is proportional to the measured current, allowing seamless interfacing with microcontrollers or analog-to-digital converters (ADCs).
• The sensitivity of the ACS712-30A version is typically 66 mV per ampere, which enables straightforward signal processing and precise current calculations.
• This ensures reliable and stable monitoring of both AC and DC current levels in various electronic systems.
• The ACS712-30AMS-CURRENT-W module incorporates additional onboard circuitry, including voltage regulation and noise filtering, to enhance measurement accuracy and operational stability.
• Packaged on a compact breakout board, the module is easy to integrate into development setups, prototypes, and embedded projects.

PACKAGE INCLUDES:

• 1 x 30A Range Current Sensor Module ACS712.
