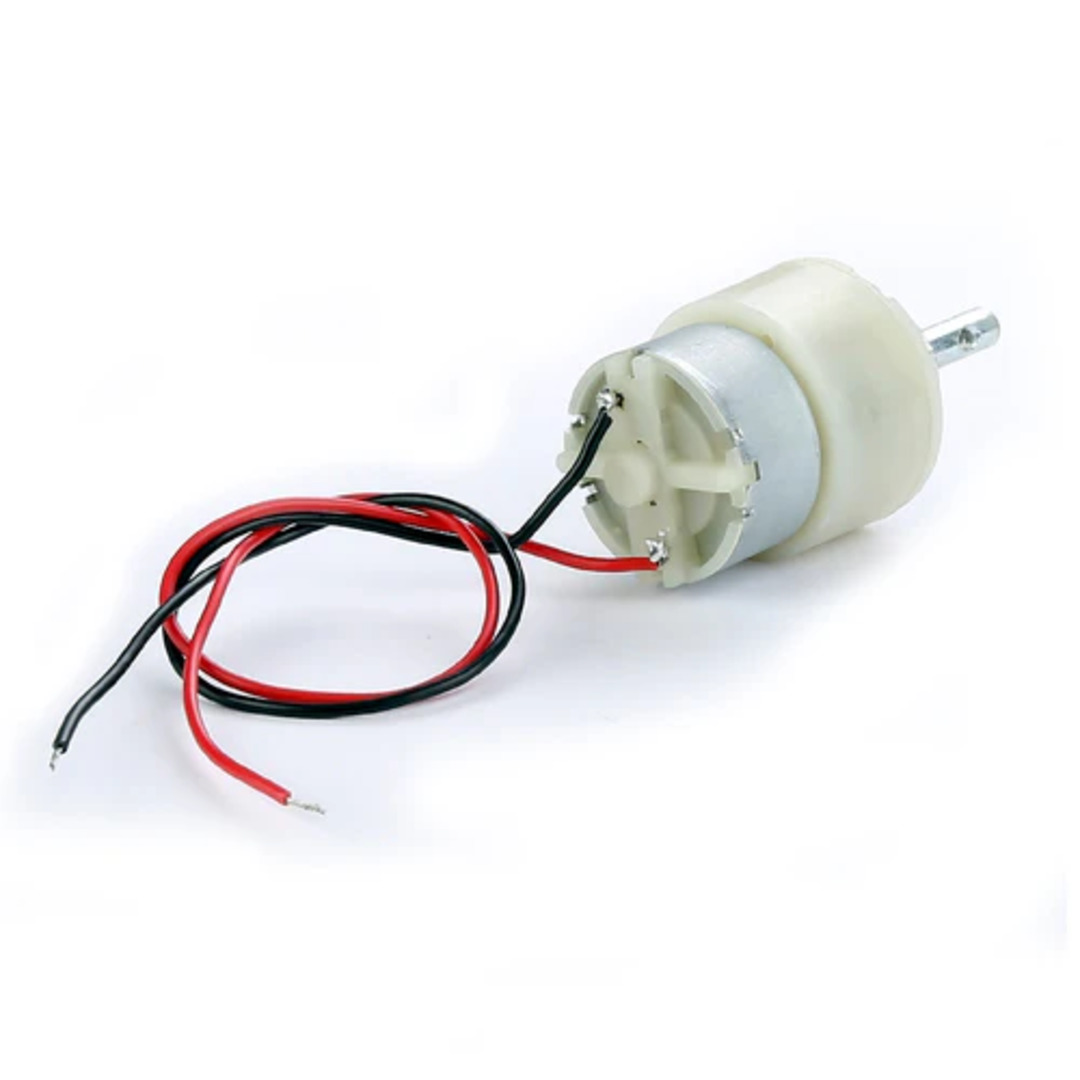

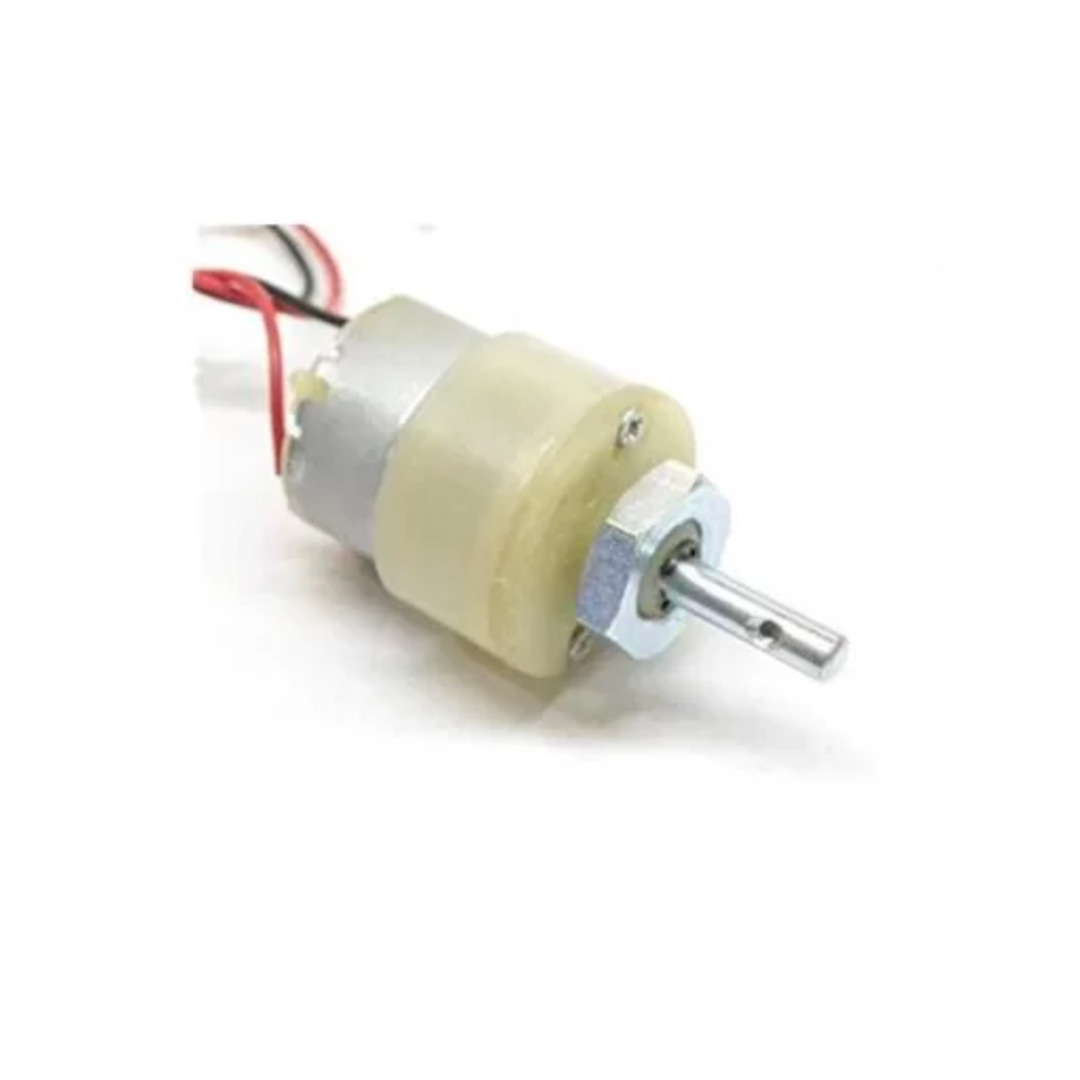

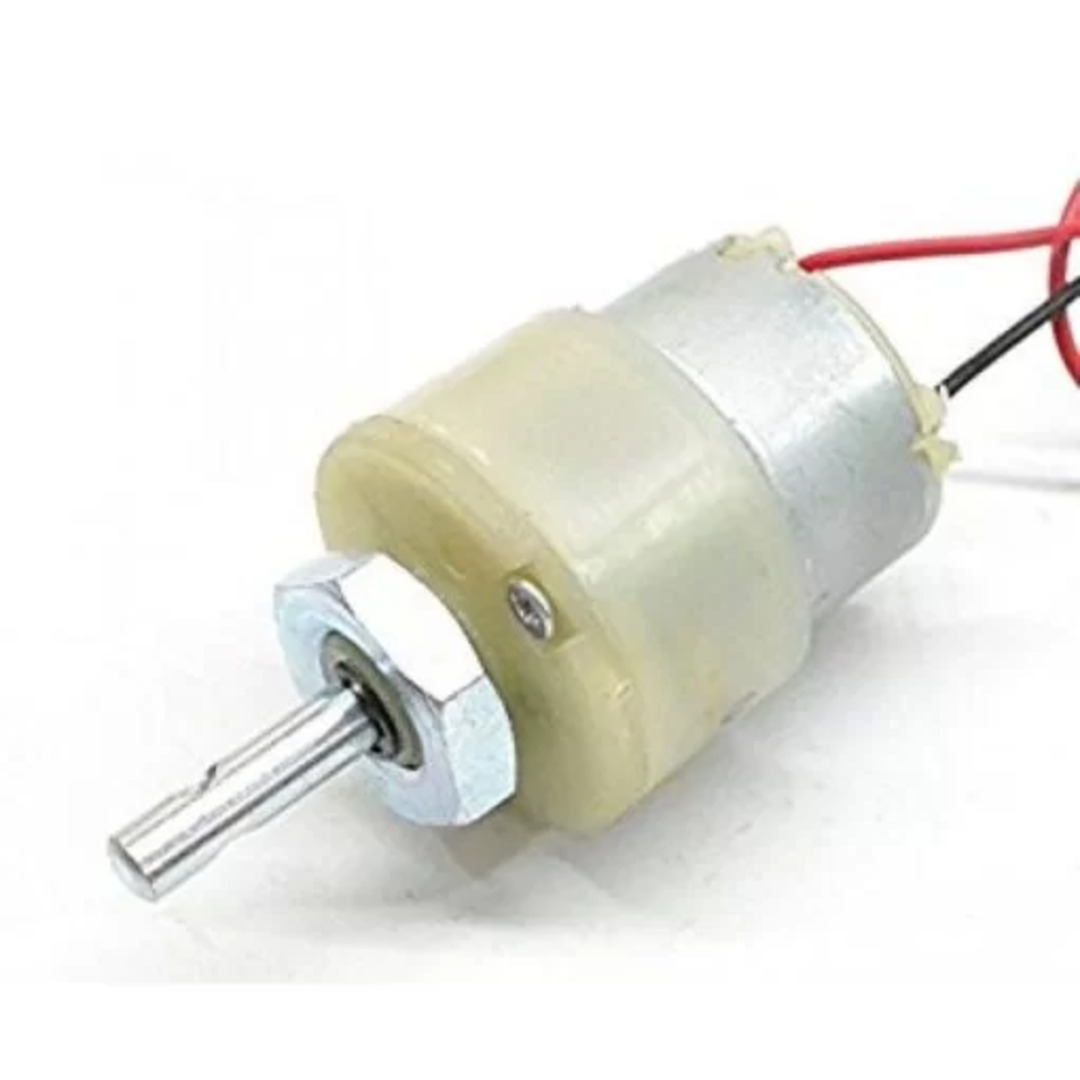

DC-GEARMOTOR-10RPM

MINIMUM TECH FEATURES

• Type: DC Gear Motor
• Speed: 10 RPM
• Operating Voltage: 6V–12V DC (Rated at 12V)
• Gear Ratio: Typically, 1:30 to 1:100 (varies by model)
• Current Draw: 200 mA to 1 A depending on load
• Shaft Diameter: ~6 mm
• Mounting: Flange or bracket type
• Design: Compact, durable gearbox
• Rated Torque: 7 kg-cm
• Stall Torque: 28 kg-cm

DESCRIPTION

• The DC Gear Motor – 10 RPM is a high-torque, low-speed motor designed for applications where precise and powerful rotational output is required. Using a DC motor combined with a reduction gearbox, it provides increased torque while maintaining a slow, controlled output speed.
• The motor supports PWM speed control, allowing easy adjustment of speed and direction using common controllers such as Arduino, ESCs, or motor drivers. Built with a compact but robust design, the motor housing and gearbox allow continuous operation under varying loads.
• This motor is widely used in automation, mechatronics, prototyping, and robotic actuation where reliable, slow-speed rotational motion is essential.

TECHNICAL SPECIFICATIONS

APPLICATIONS

• Automated Devices
• Industrial Automation
• Medical Equipment
• Security & Surveillance Systems
• Solar Tracking Mechanisms
• Automotive Actuators
• Agricultural Machinery
• Consumer Electronics
• Robotics & Actuators
• Model Making / Hobby Projects
