FLEX-2.2-INCH
PACKAGE INCLUDES:
- 1 × Spectra Symbol Flex Sensor 2.2″ Bend Sensor (for Hand Gesture Recognition)
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
17
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
MINIMUM TECH FEATURES:
- Operating Voltage: 0–5V DC
- Flat Resistance: 25KΩ (typical)
- Range of Bend Resistance: 45KΩ – 125KΩ
- Continuous Power Rating: 0.5W
- Peak Power Rating: 1W
- Life Cycle: > 1 million flexes
- Length: 2.2 inches (approx. 55mm active sensing area)
DESCRIPTION:

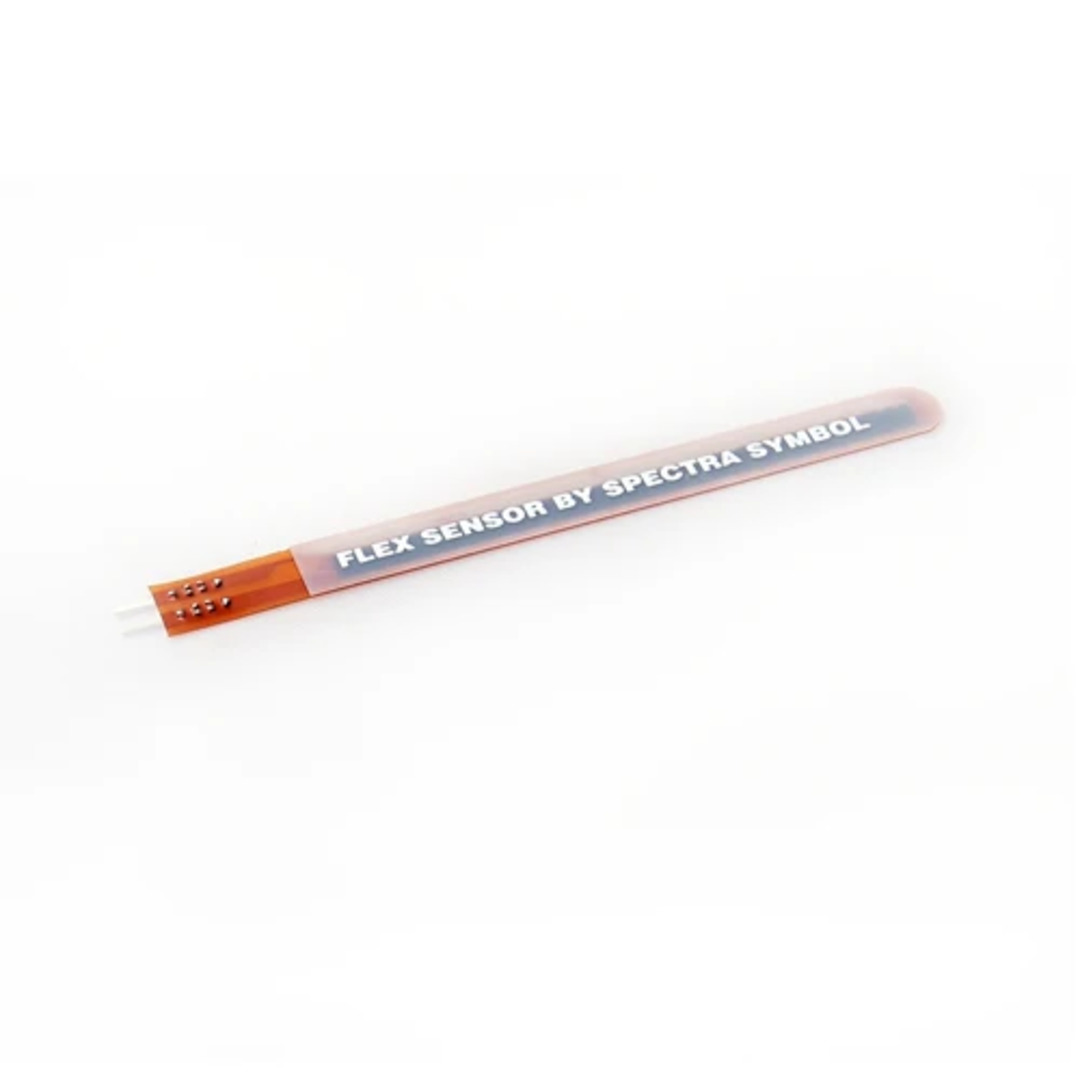

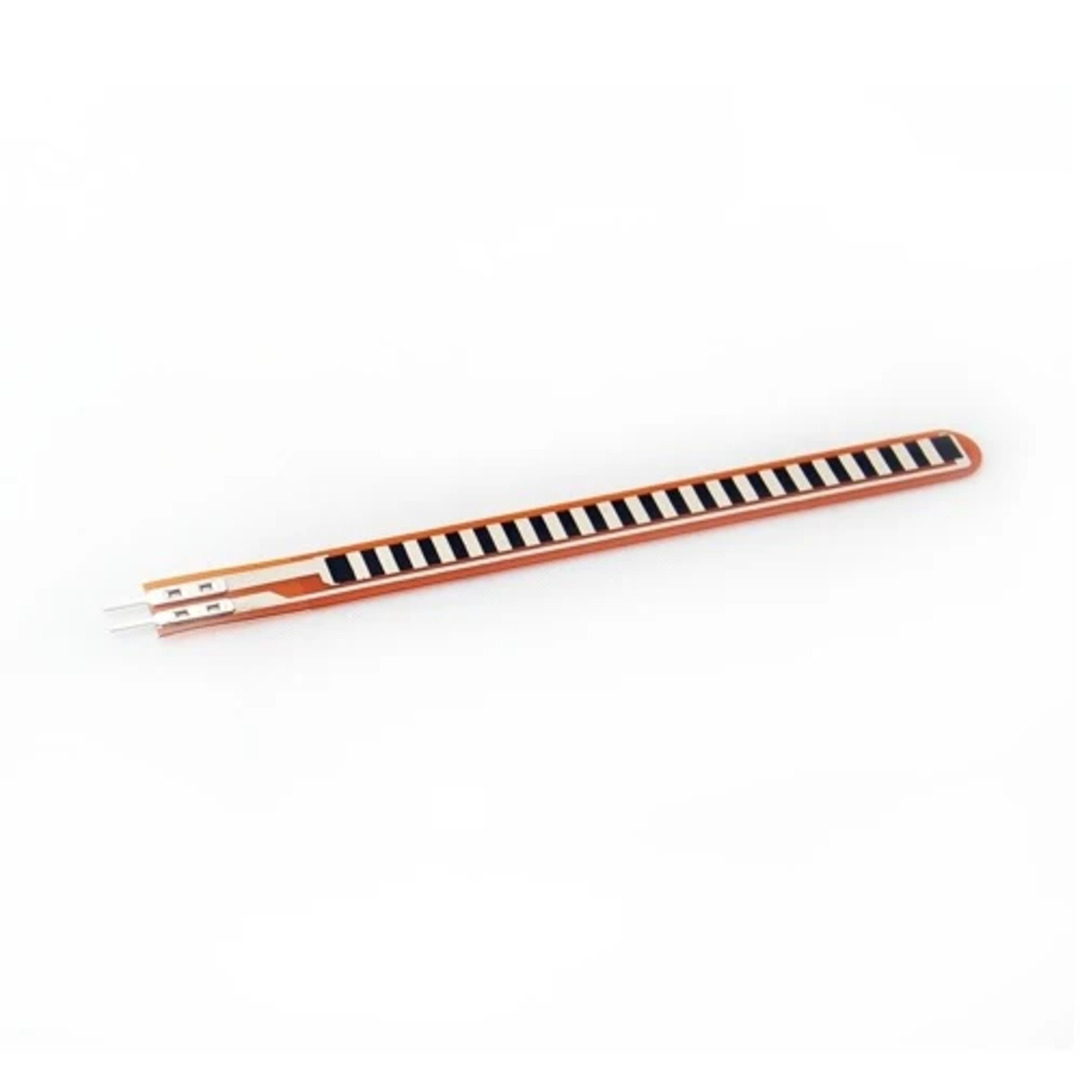

- The FLEX-2.2-INCH sensor (by Spectra Symbol) is a variable-resistance device that changes its resistance according to the amount of bend or flex applied.
- It provides analog output proportional to the degree of bending — ideal for applications in motion sensing, robotics, gaming, and biomedical devices.
- The flat, lightweight construction allows it to be easily attached to gloves, exoskeletons, or joint measurement setups.
- Offers reliable, repeatable performance with over a million flex cycles, ensuring durability and consistency.
- Output can be easily read using an Arduino, Raspberry Pi, or any microcontroller with an ADC input.
- Commonly used for hand gesture recognition, angle measurement, and robotic motion feedback systems.
TECHNICAL SPECIFICATIONS:
| Parameter | Specification |
| Manufacturer | Spectra Symbol |
| Model | Flex Sensor 2.2″ |
| Total Length | 8 cm |
| Active Sensing Length | 80 mm |
| Flat Resistance | 10KΩ ±30% (typical) |
| Bend Resistance | ≥20KΩ ±30% (at 180° bend) |
| Operating Voltage | 0–5V DC |
| Continuous Power | 0.5 W |
| Peak Power | 1 W |
| Thickness | 0.43 mm (0.017″) |
| Life Cycle | > 1 million flexes |
| Cable Length | ~2 feet |
| Weight | 30 g |
| Operating Temperature | –20°C to +60°C |
| Output Type | Analog variable resistor |
APPLICATIONS:
- Angle and Displacement Measurement
- Robotics and Motion Tracking
- Gaming and Virtual Reality Controllers
- Biomedical Devices and Wearables
- Musical Instrument Controllers
- Physical Therapy and Rehabilitation
- Human-Computer Interaction (HCI)
- Gesture-Based Interfaces
