FORCE SQUARE
PACKAGE INCLUDES

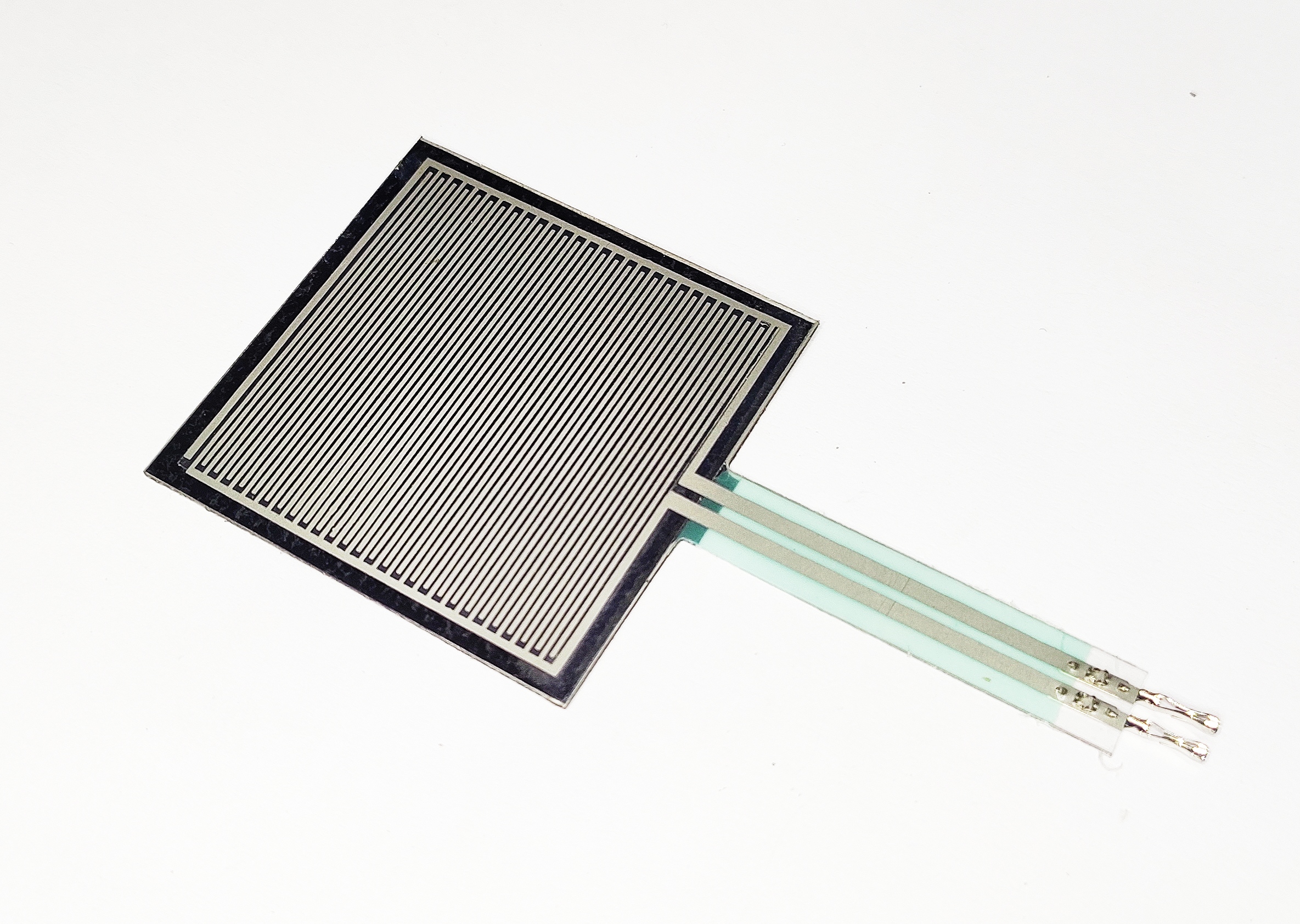

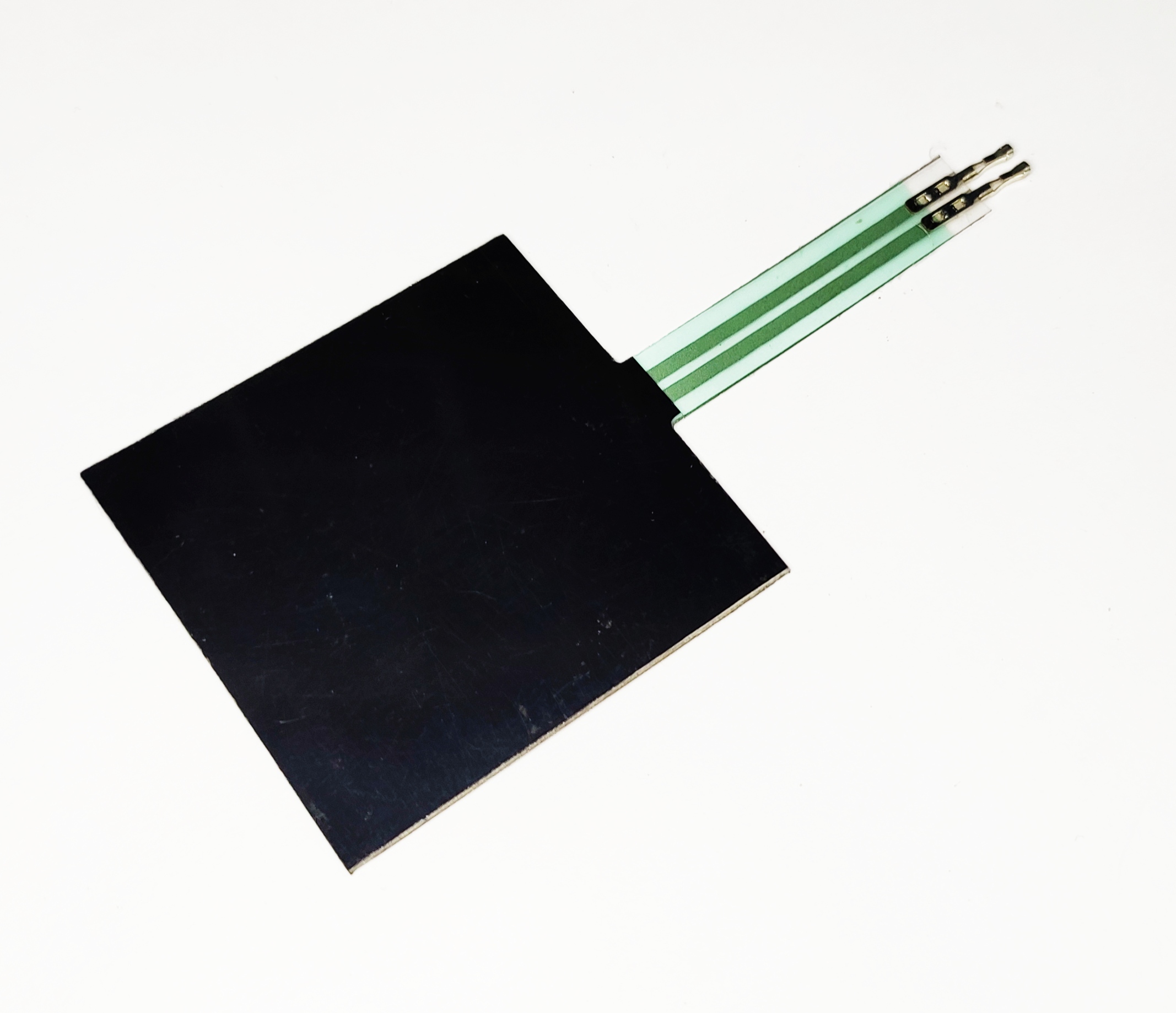

- 1 × Tekscan FlexiForce A502 Ultra-Thin Force Sensor
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
14
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
MINIMUM TECH FEATURES
- Ultra-thin construction: 0.203 mm (0.008 in.)
- Large square sensing area: 50.8 mm × 50.8 mm (2 in. × 2 in.)
- Wide force range: 0 to 22.6 kg
- 2-pin male square connector (2.54 mm spacing)
- Polyester flexible substrate
- Supports analog voltage output; adaptable for digital interfacing
- Designed for wide mechanical and environmental durability
DESCRIPTION
Key characteristics include:
- Square shape for balanced force distribution
- High sensitivity for small to large force detection
- Available in multiple force ranges for diverse applications
- Durable design for harsh or industrial environments
- Compatible with analog data acquisition systems; adaptable to digital interfaces (I2C / SPI using conditioning circuits)
- Optional customization (size, range, mounting options)
- Temperature-compensated performance
- Easy installation using mounting holes or adhesive backing
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
| Thickness | 0.203 mm |
| Sensing Area | 50.8 mm × 50.8 mm |
| Substrate | Polyester |
| Connector | 2-pin Male Square Pin |
| Pin Spacing | 2.54 mm |
| Operating Voltage | 0.25–1.25 VDC |
| Max Current | 0.2 A |
| Operating Temperature | –40°C to +60°C |
| Drift | < 5% per log time scale |
| Hysteresis | < 4.5% of full scale |
| Linearity Error | < ±3% of full scale |
| Repeatability | < ±2.5% |
| Response Time | 5 μs |
| RoHS Compliant | Yes |
| Shipping Weight | 0.008 kg |
| Shipping Dimensions | 14 × 2 × 0.5 cm |
APPLICATIONS
- Testing & measurement equipment
- Embedded electronics modules
- OEM development kits and prototype integration
- Consumer electronics (pressure/force sensing)
- Multimeters, instrumentation with force sensing
