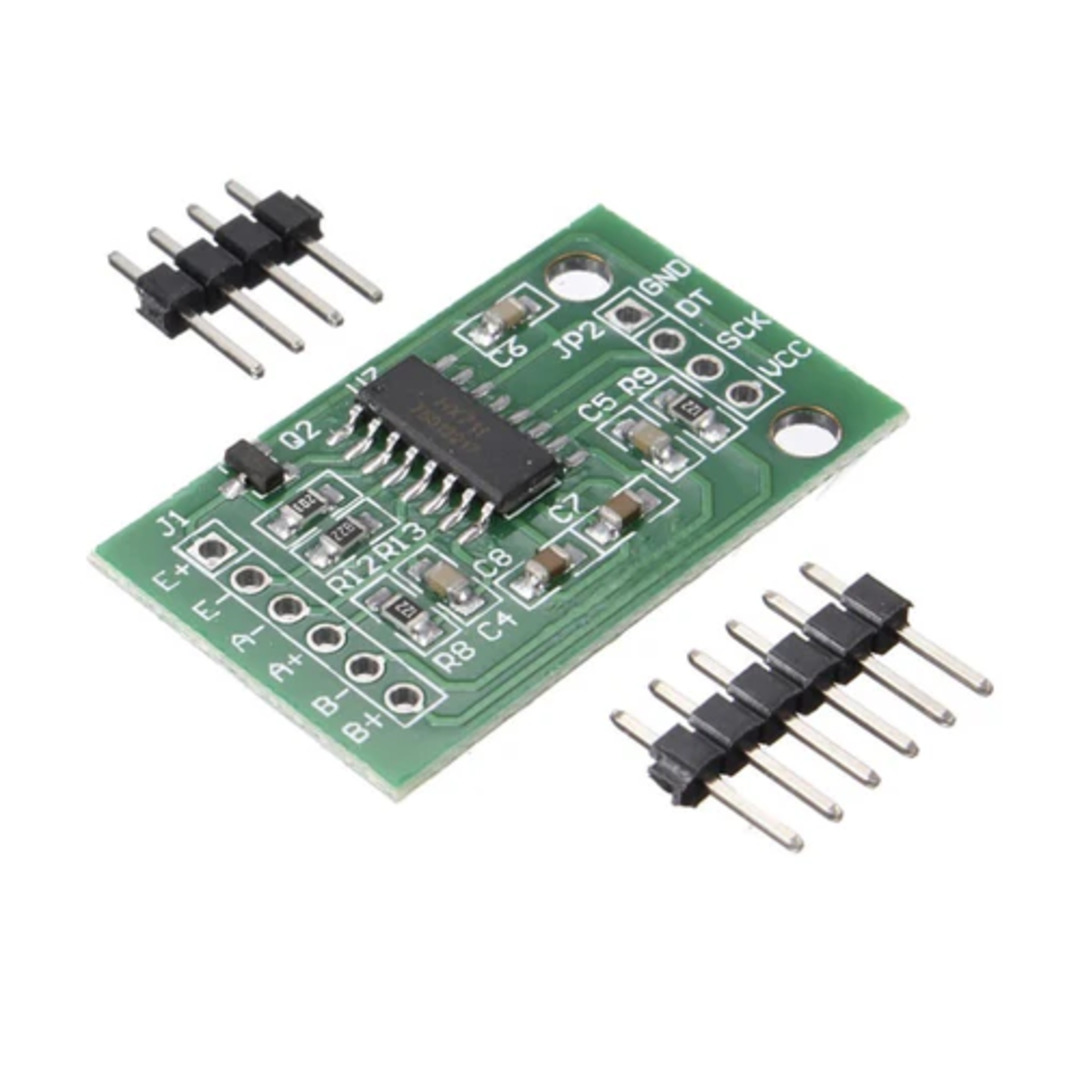

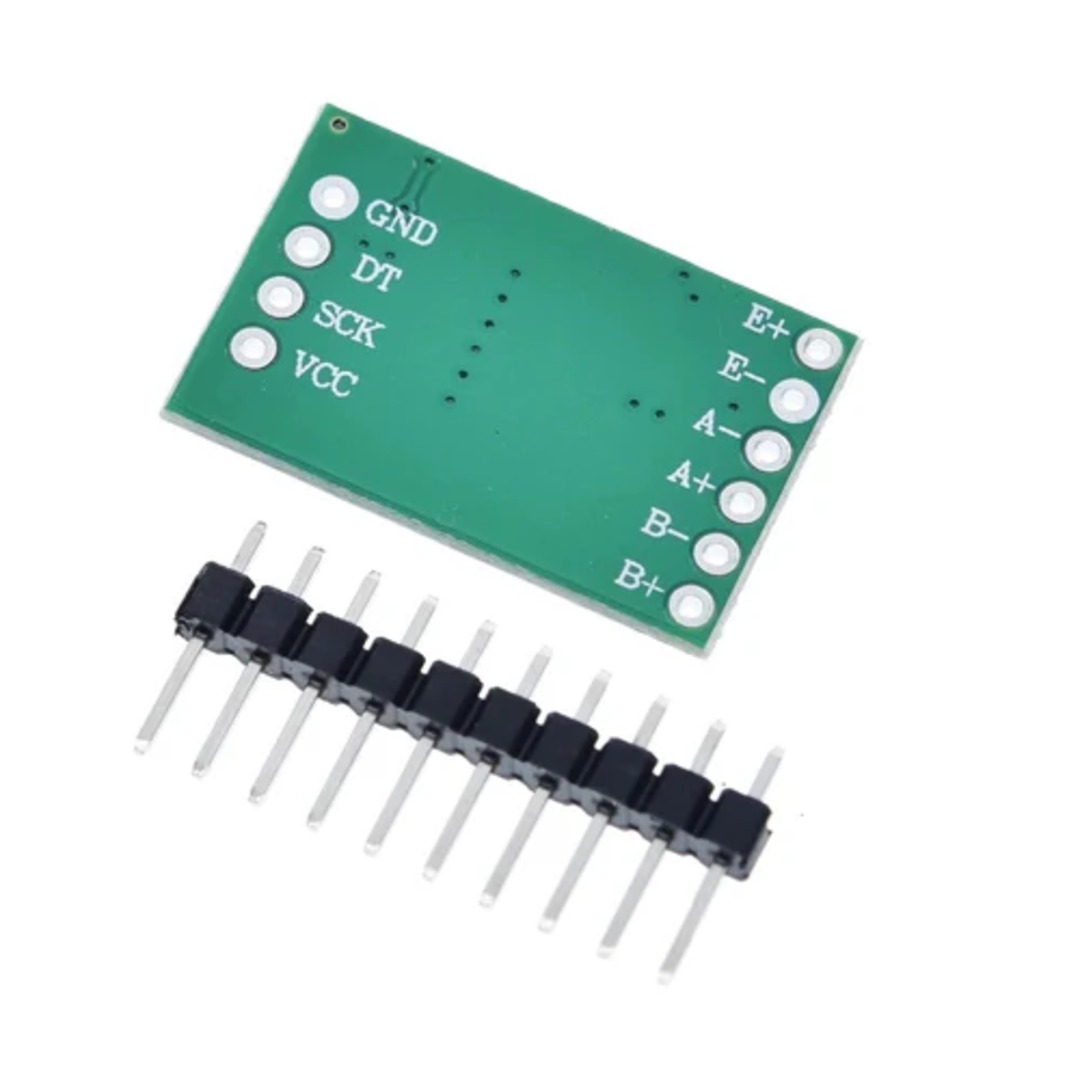

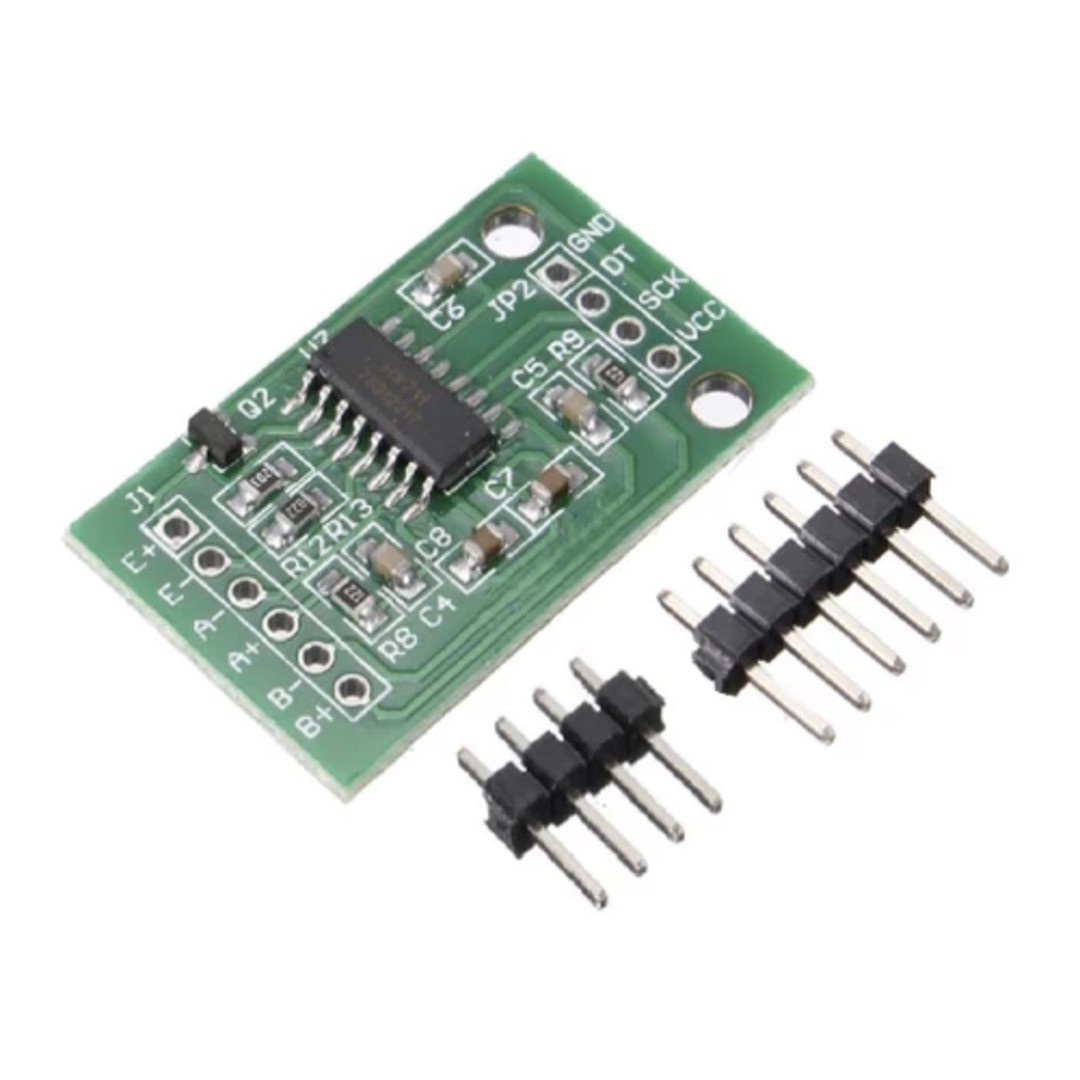

HX711 – 24-bit Precision Load Cell Amplifier Module
PACKAGE INCLUDES
- 1 × Dual-Channel 24-bit Precision A/D Weight Sensor Module with HX711
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
12
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
MINIMUM TECH FEATURES
- Output Sensitivity: 1.0 ± 0.1 mV/V
- Measurement Resolution: 24-bit ADC
- Operating Current: ≈1.5 mA
- Temperature Range: −40°C to +85°C
- CMRR: 100 dB
- Data Output: 2-wire digital interface (DOUT, SCK)
DESCRIPTION
- Offers 24-bit precision for high-resolution load and pressure measurements.
- Built-in low-noise programmable gain amplifier (PGA) ensures stable readings even from tiny signal changes.
- Two sampling rates:
- 10 SPS (high-resolution mode)
- 80 SPS (fast-response mode)
- Simplifies circuit design by eliminating the need for external amplifiers.
- Supports easy interfacing with microcontrollers through a simple 2-wire protocol.
- Analog supply voltage: 2.6–5.5 V
- Digital supply voltage: 2.7–5.5 V
- PGA Gain options: 128, 64, 32
- Auto power-down mode when SCK is inactive.
- Suitable for single-channel or dual-channel load cell systems.
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Operating Voltage (module) | 5–10 V* |
| Current Consumption | < 1.5 mA |
| Operating Temperature | −40°C to +85°C |
| Length | 34.3 mm |
| Width | 20 mm |
| Height | 3 mm |
| Weight | 5 g |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 10 × 8 × 6 cm |
APPLICATIONS
- Weighing Scales
- Load Measurement Systems
- Pressure & Strain Gauge Measurement
- Robotics & Automation
- Health & Fitness Devices
- Industrial Monitoring & Control
- Prototyping & DIY Projects
- Agricultural & Environmental Monitoring
- Medical Equipment
- Food & Beverage Industry
- Testing & Calibration Systems
- Consumer Electronics
