JSN-SR04T-WATER-PROOF-ULTRASONIC

MINIMUM TECH FEATURES:

• Small size, easy to use
• Low voltage, low power consumption
• High accuracy
• Strong anti-jamming capability
• Integrated enclosed waterproof probe suitable for wet or harsh environments

DESCRIPTION:

• The JSN-SR04T waterproof ultrasonic sensor is enclosed in a sealed plastic/resin housing that protects the electronics from water ingress, enabling usage outdoors, in high-humidity conditions, or near liquid surfaces.
• Like the standard HC-SR04, it consists of an ultrasonic transmitter and receiver. The transmitter sends ultrasonic bursts, and the receiver detects the returning echoes.

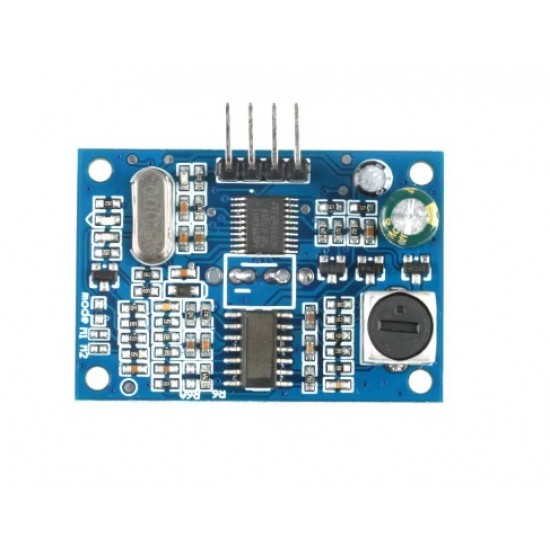

• An onboard control IC manages timing, pulse generation, echo processing, and distance calculation.

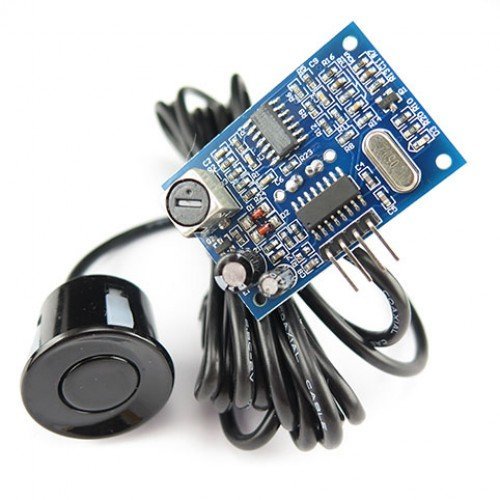

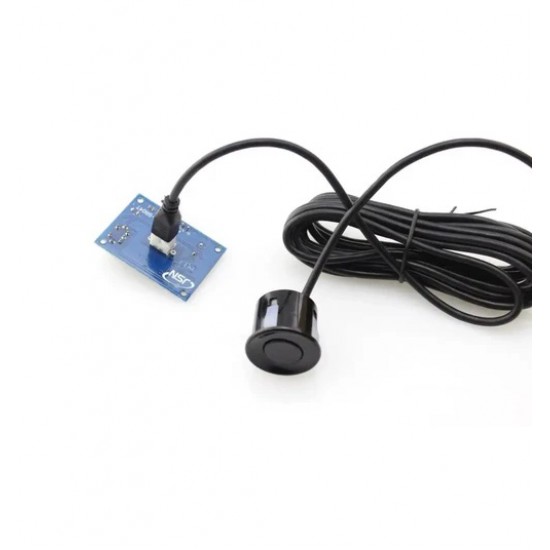

• Some variants include a long 2.5-meter waterproof cable that maintains water resistance while allowing flexible sensor placement.
• When triggered by a microcontroller, the module emits an ultrasonic pulse and listens for the echo.
• Distance is calculated by measuring the time between sending the pulse and receiving the echo.
• The calculation uses the speed of sound in air (~343 m/s at 25 °C).

TECHNICAL SPECIFICATIONS:

APPLICATIONS:

• Water Level Monitoring
• Outdoor Distance Measurement
• Marine Applications
• Industrial Automation
• Agricultural Technology
• Underwater Robotics
• Flood Monitoring & Warning Systems
• Vehicle Proximity Detection
• Smart Home Applications
• Environmental Monitoring
