LOAD MINI 1KG
PACKAGE INCLUDES:

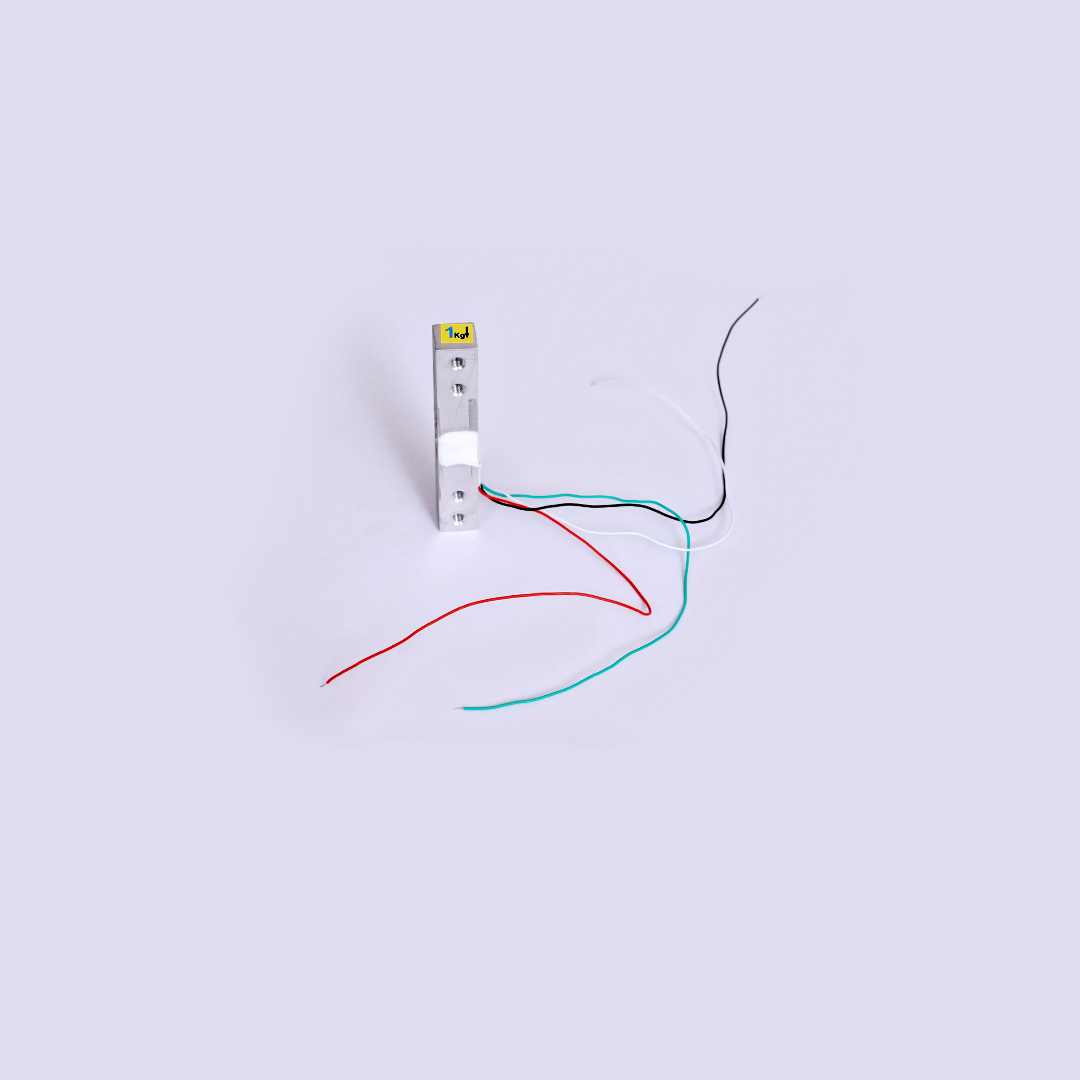

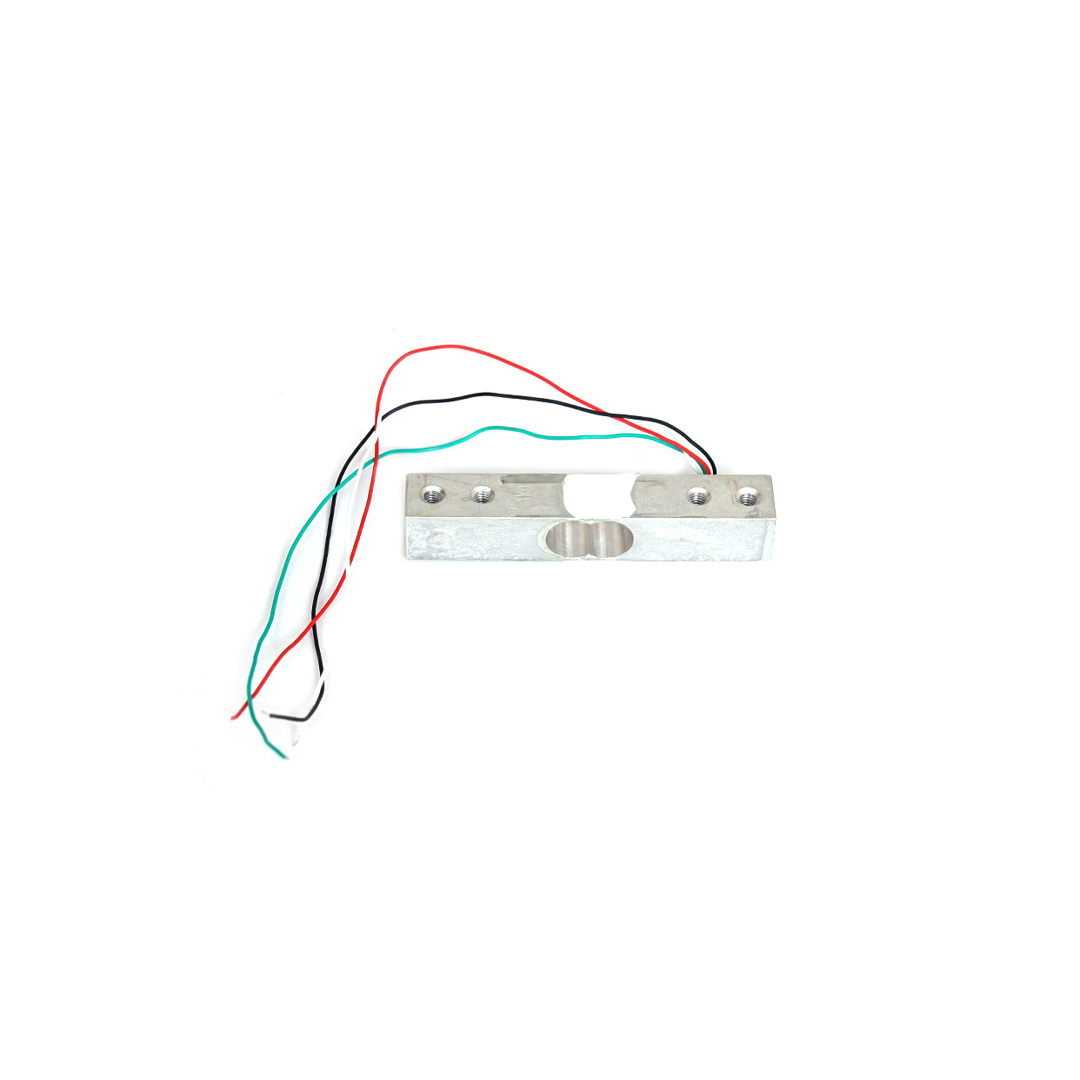

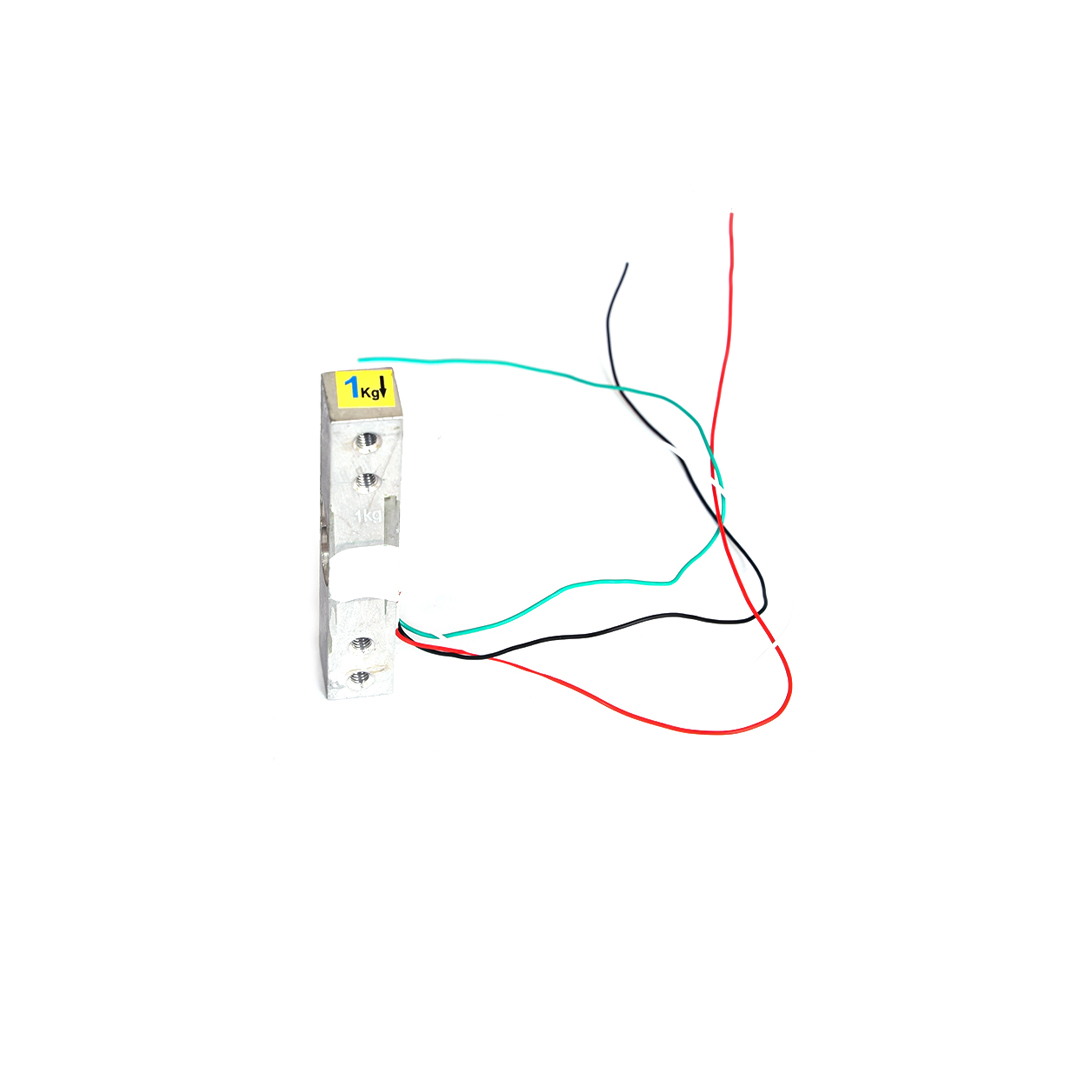

1 × 1Kg Weighing Load Cell Sensor (Model YZC-131)
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
14
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
MINIMUM TECH FEATURES:
- Weighing Range: 0 ~ 1 kg
- Rated Output: 1.0 ± 0.1 mV/V
- Nonlinear Output: ± 0.03% F.S.
- Input Impedance: 1066 ± 10% Ω
- Output Impedance: 1000 ± 10% Ω
- Insulation Resistance: ≥ 2000 MΩ
- Material: Aluminum alloy construction for lightweight durability
- Operating Temperature: -20°C to +65°C
DESCRIPTION:
- The LOAD-MINI-1KG is a compact, high-precision load cell sensor designed for measuring weights up to 1 kilogram with excellent linearity and stability.
- Built using durable aluminum alloy, it provides both lightweight construction and robust performance, suitable for embedded weighing systems and compact scales.
- The sensor operates on the principle of strain gauge measurement, converting applied force into a measurable electrical signal (mV output).
- Its small form factor makes it ideal for DIY projects, IoT-based weighing systems, and educational setups.
- When paired with an amplifier module like the HX711, the load cell can easily interface with Arduino, Raspberry Pi, and other microcontrollers, enabling precise digital weight measurement.
- It ensures high repeatability, low hysteresis, and long-term reliability under stable load conditions.
TECHNICAL SPECIFICATIONS:
| Parameter | Specification |
| Model | YZC-131 |
| Material | Aluminum Alloy |
| Dimensions (L × W × H) | 75 × 12.6 × 12.6 mm |
| Weighing Range | 0 – 1 kg |
| Rated Output | 1.0 ± 0.1 mV/V |
| Nonlinearity | ± 0.03% F.S |
| Input Impedance | 1066 ± 10% Ω |
| Output Impedance | 1000 ± 10% Ω |
| Insulation Resistance | ≥ 2000 MΩ |
| Hysteresis | ≤ 0.03% F.S |
| Repeatability | ≤ 0.03% F.S |
| Creep (5 min) | ≤ 0.05% F.S |
| Zero Balance | ± 0.1 mV/V |
| Cable Length | 18 cm |
| Operating Temperature | -20°C to +65°C |
| Weight | 26 g |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 12 × 5 × 4 cm |
APPLICATIONS:
- Fitness and Exercise Equipment
- Rehabilitation and Therapy Devices
- Educational and Demonstration Kits
- Industrial Automation and Measurement
- IoT-based Smart Scales
- Precision Engineering Projects
- Agricultural and Livestock Weighing
- Home and Hobby Projects
- DIY Electronic Weighing Systems
