MAX30100 PULSE SENSOR

MINIMUM TECH FEATURES:

• Input Voltage: 1.8V to 5.5V
• Shutdown Current: 0.7 µA (ultra-low power)
• Communication Interface: I²C (Two-Wire Interface)
• Integrated LEDs: Red and Infrared
• Photodetector: Onboard with ambient light rejection

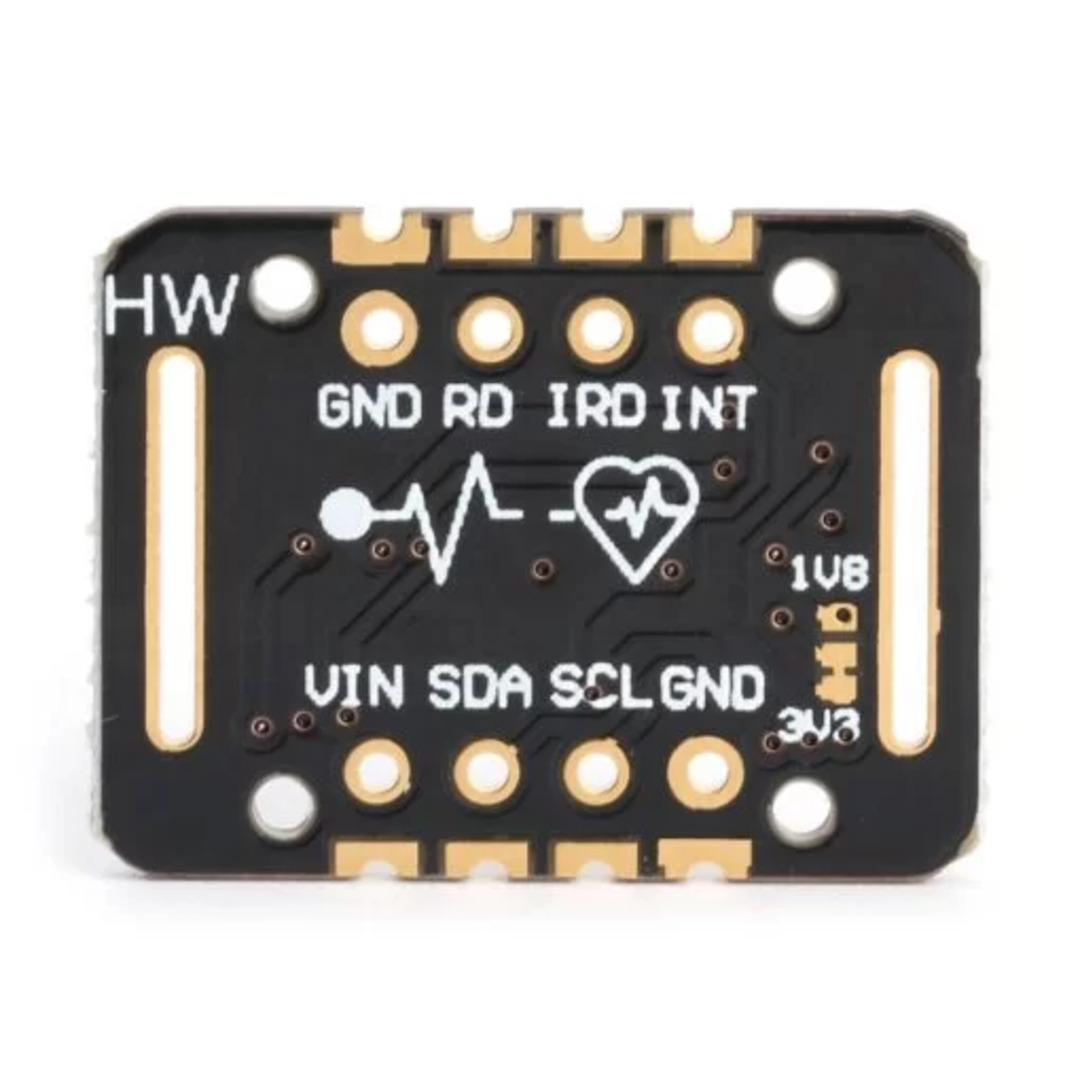

• INT Pin: For interrupt signaling

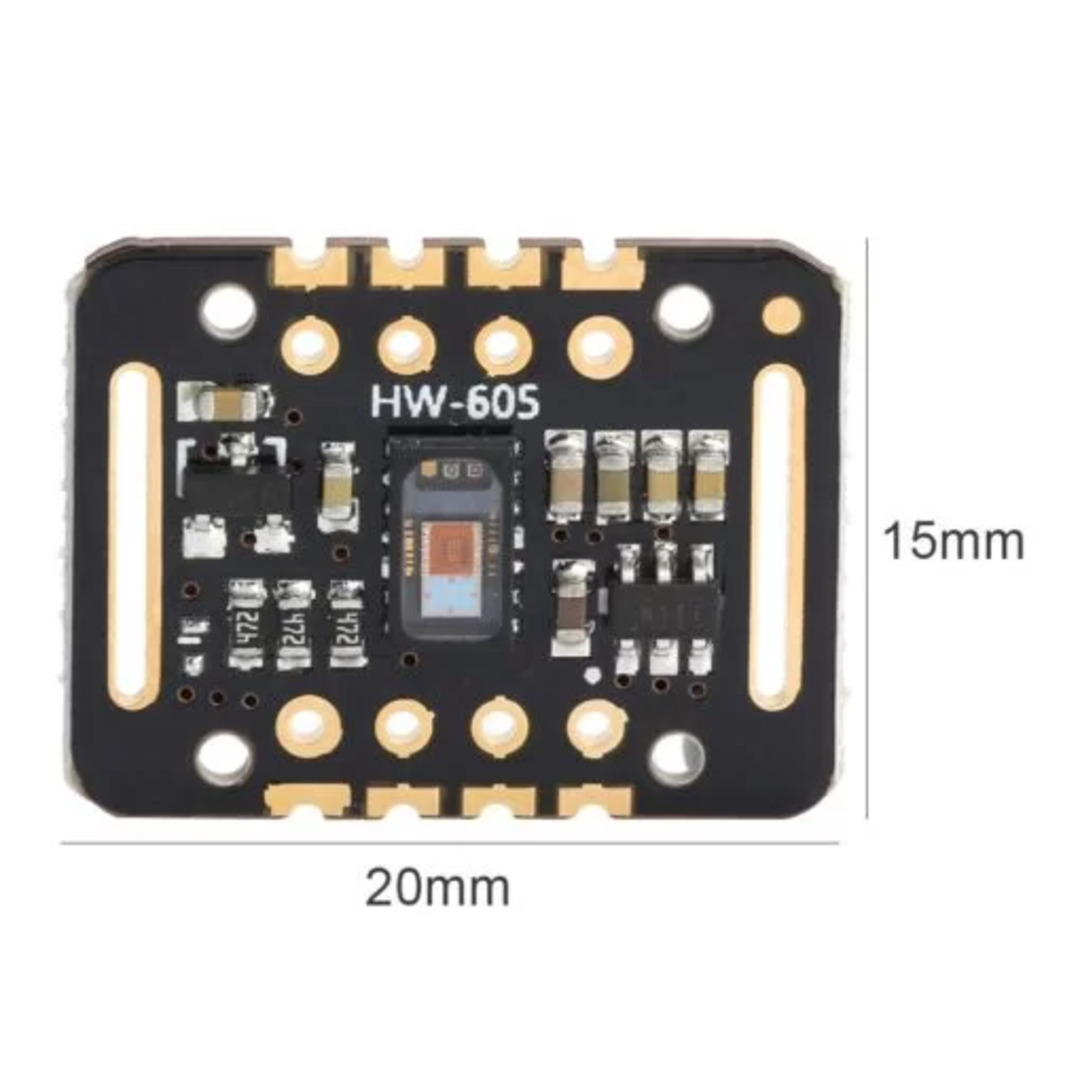

• Dimensions (L x W): 19 mm × 14.5 mm
• Weight: 2 g
• Color: Green

DESCRIPTION:

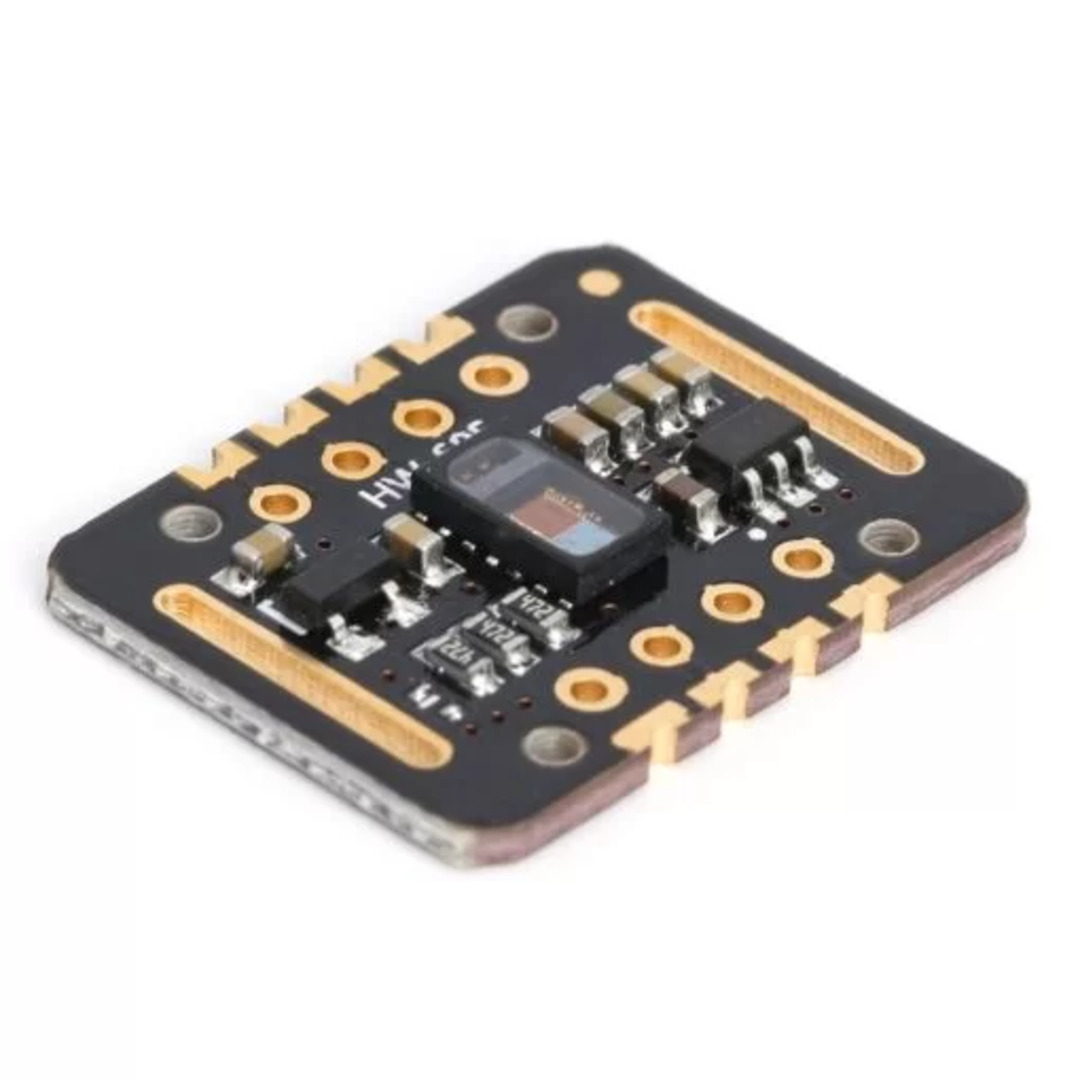

• The MAX30100-PULSE-I2C is an integrated pulse oximetry and heart-rate sensor module, designed for wearable and portable health monitoring systems. It combines two key sensing elements — red and infrared LEDs and a photodetector — along with low-noise analog signal processing, enabling precise measurement of SpO₂ (oxygen saturation) and heart rate (BPM).
• This sensor operates based on photoplethysmography (PPG) — a technique that measures variations in light absorption due to changes in blood volume with each heartbeat. The module’s I²C communication interface allows simple and direct connection with microcontrollers such as Arduino, ESP8266, ESP32, and Raspberry Pi.
• Compact and power-efficient, the MAX30100 is ideal for battery-powered applications. It features built-in ambient light cancellation for improved accuracy in diverse lighting conditions and includes an interrupt pin (INT) for event-driven operation.

TECHNICAL SPECIFICATIONS:

APPLICATIONS:

• Wearable Health and Fitness Devices
• Remote Patient Monitoring
• Fitness and Exercise Tracking
• Sleep Monitoring Systems
• Healthcare and Biomedical Devices
• Personal Health Monitoring
• Research and Development Projects
• Sports Science and Performance Studies
• Emergency Medical Equipment
• IoT-based Health Monitoring Platforms
