BMP180-BAROMETRIC-W Pressure & Temperature Sensor Module
Package Includes

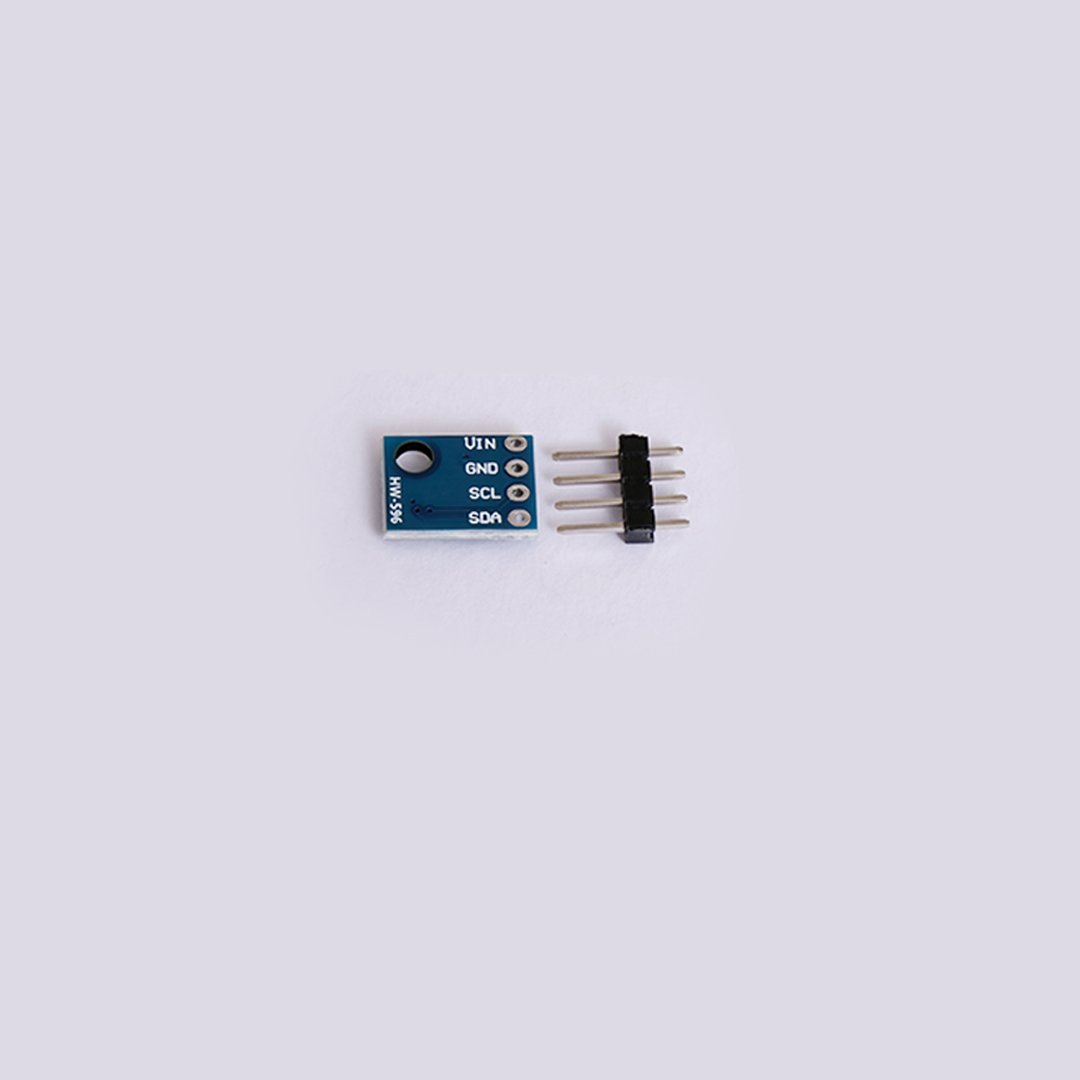

- 1 × BMP180 Digital Barometric Pressure Sensor Board
- 1 × 1×4 Straight Burg Connector Pin Header
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
13
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Minimum Technical Features:
- Supply voltage: 1.8V to 3.6V
- Digital communication: I²C interface (up to 3.5 MHz)
- Fully factory calibrated for both pressure and temperature
- High resolution and low noise: up to 0.02 hPa (≈17 cm altitude difference)
- Compact and easy-to-use breakout board for direct microcontroller interfacing
- Low power consumption: only 0.5 µA @ 1 Hz measurement rate
Description:
- The BMP180 is a high-precision, low-power barometric pressure and temperature sensor from Bosch Sensortec. It provides precise pressure and temperature readings that can also be used to calculate altitude changes with high accuracy.

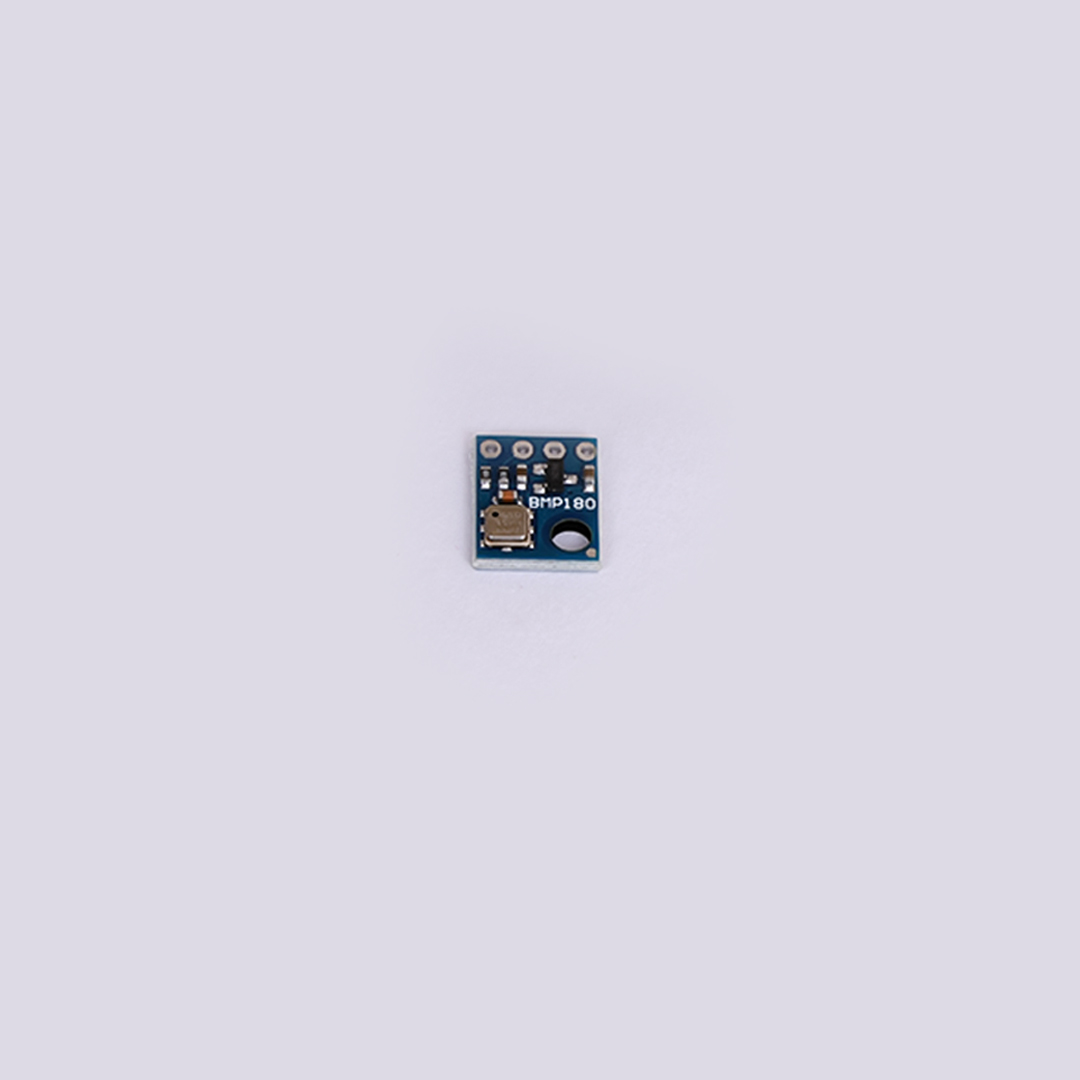

- The BMP180-BAROMETRIC-W module integrates this sensor on a breakout board, simplifying its connection to microcontrollers like Arduino, Raspberry Pi, and ESP32. The board often includes level shifting and regulation circuitry for compatibility with both 3.3V and 5V systems.
- It measures atmospheric pressure over a range of 300 hPa to 1100 hPa (equivalent to altitudes from +9000 m to −500 m). Its integrated temperature sensor enhances pressure calibration for precise results.
- Due to its compact form and digital I²C interface, the BMP180 is ideal for applications in IoT systems, wearable devices, environmental monitoring, navigation, and weather forecasting.
Technical Specifications:
| Parameter | Specification |
| Input Supply Voltage (VDC) | 1.8 – 3.6 |
| Power Consumption | 0.5 µA @ 1 Hz |
| Interface Type | I²C (Inter-Integrated Circuit) |
| Maximum I²C Speed | 3.5 MHz |
| Pressure Range | 300 – 1100 hPa (approx. +9000 m to −500 m altitude) |
| Temperature Range | −40°C to +85°C |
| Resolution | 0.02 hPa (≈17 cm) |
| Output Type | Digital (I²C) |
| PCB Size (L × W) | 13 × 12 mm |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 4 × 4 × 2 cm |
Applications:
- Weather stations and environmental monitoring
- Altitude measurement and navigation systems
- Indoor positioning and mapping
- Wearable and fitness devices
- IoT and smart home sensors
- Robotics and drone altitude control
- Meteorological and research instruments
- Smartphone and tablet barometric sensing
- Weather forecasting systems
