CAPACITIVE-SOILMOISTURE
PACKAGE INCLUDES

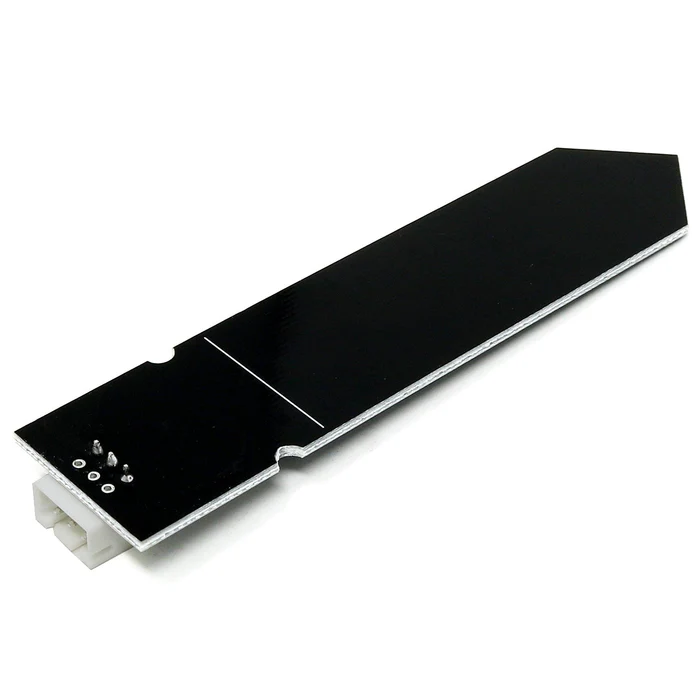

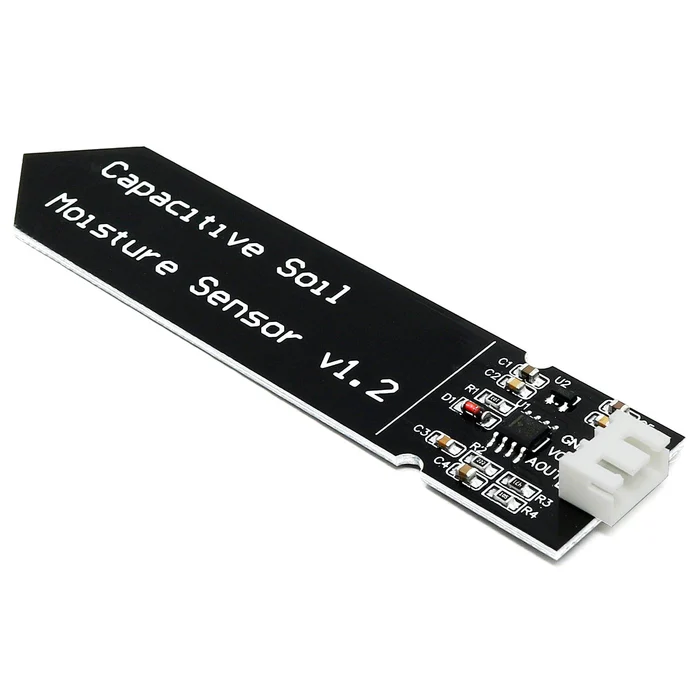

1 × Capacitive Soil Moisture Sensor
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
16
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
MINIMUM TECH FEATURES
- Supports 3-Pin Gravity Sensor Interface
- Analog output
- Non-corrosive capacitive measurement principle
DESCRIPTION
- This capacitive soil moisture sensor uses two conductive plates that act as a capacitor.
When soil moisture varies, the dielectric constant of the soil changes, altering the capacitance value. - Higher moisture → higher dielectric constant → increased capacitance, which is converted into an analog voltage output.
- Unlike resistive moisture sensors, this sensor is corrosion-free, resulting in a longer lifespan and reduced maintenance.
- Offers stable and accurate moisture readings, even in diverse soil conditions.
- Low power consumption makes it suitable for battery-powered or IoT applications.
- Ideal for use with Arduino, ESP8266, ESP32, Raspberry Pi, and similar microcontrollers.
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Operating Voltage | 3.3 ~ 5.5 VDC |
| Output Voltage | 0 ~ 3.0 VDC |
| Operating Current | 5 mA |
| Interface | PH2.54 – 3P |
| Dimensions (L × W × H) | 98 × 23 × 4 mm |
| Weight | 15 g |
| Shipping Weight | 0.018 kg |
| Shipping Dimensions | 12 × 4 × 1 cm |
APPLICATIONS
- Agriculture & Farming
- Gardening & Landscaping
- Environmental Monitoring
- Greenhouse Automation
- Horticulture
- Smart Irrigation Systems
- Land Rehabilitation Projects
- Urban Agriculture
- Research & Academic Experiments
- Civil Engineering Soil Studies
